Making Manhattan Livable
Proposal for a Near-Future New York
2020
![](https://freight.cargo.site/t/original/i/999758a1b19636b0a3ab77e21a8f99c707f82188c4df58ab950336204e0db325/RENDER-OBLIQUE.jpg)
‘Making Manhattan Livable’ explores methods of increasing the island’s density without ereasing its built identity by rethinking historic preservation and adaptive reuse. The steps are as follows:
![](https://freight.cargo.site/t/original/i/4b6f5e7a0f600dad736b21f2fa719fbf6abf9cd5f7e21ced4f0907ec7f8018d0/DIAGRAM.jpg)
1. Locate a huge, under-utilized property with F.A.R. to spare (in this case, 620 Avenue of the Americas in Midtown South, which is missing out on over 300,000 s.f.).
2. Carve out a double-height arcade to increase street-level porosity and free up additional residential F.A.R.
![](https://freight.cargo.site/t/original/i/5a1aa5ab040663f96637d02d96c27191a7998143c4443570b591a744b7a83e4b/RENDER-SIDE.jpg)
3. Carve out 30’-wide light wells to increase the perimeter of the floor plates, making them viable for residential layouts.
![](https://freight.cargo.site/t/original/i/9e5acfb4c012bd0d31ac8215100b4d29bf1ad1740a77f3a771c0af8f650513e5/RENDER-FRONT.jpg)

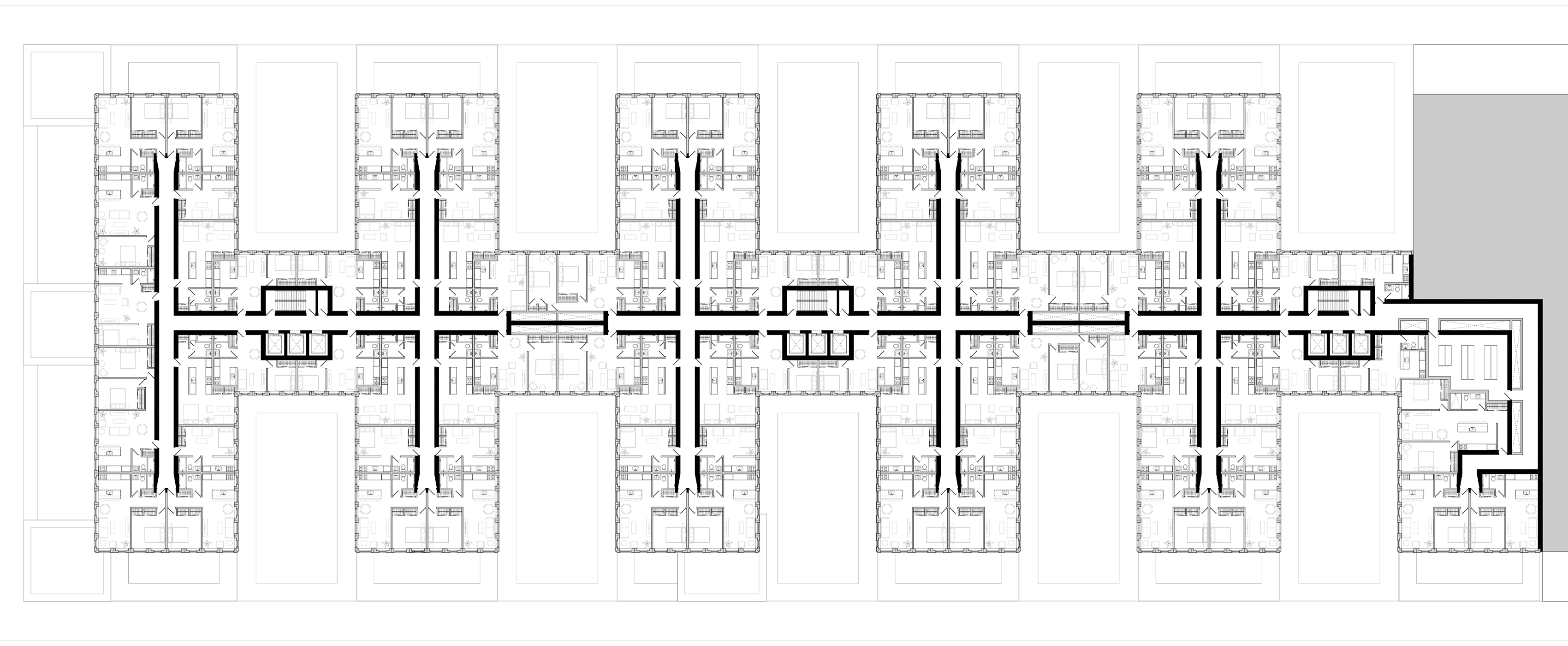

4. Erect a continuous triple-core central spine that doubles as the building’s vertical structural support.
![](https://freight.cargo.site/t/original/i/729eef6321d52cecbf11e5b15fbc23d429c354f67f18dd87487ca28c3ded6d90/PLAN.jpg)
5. Cantilever concrete floors from the vertical spine. The elimination of perimeter structural support maximizes the buildings long-term spatial flexibility.
![](https://freight.cargo.site/t/original/i/18dcbd061b9a02e2945c568016efffb48207a9be165da5c10d3338cac2d4a1b0/ISO.jpg)
6. Insert 1300 per-fabricated units, comprising studios (40%), 1BRs (45%), and 2BRs (15%). Given the building’s structural flexibility, this mix can be adjusted in the future as the city’s needs change.
